防腐耐磨产线Anti-Wear & Anti-Corrosion
从涂层材料到防腐工程：烟囱、脱硫塔、储罐、管道与钢结构——勘察、方案、材料、施工、巡检一体化，让设施多服役十年。
Materials to turnkey works: chimneys, FGD towers, tanks, pipelines and steel structures — survey, design, materials, application and aftercare, adding a decade of life.
涂层材料体系Coating Systems
按介质、温度与磨损工况选型——材料对路，防腐耐磨才真正成立。
Selection driven by media, temperature and abrasion — the right system makes protection real.
重防腐玻璃鳞片体系
Glass-Flake Systems
乙烯基酯/环氧玻璃鳞片胶泥，耐强酸结露与 120℃ 烟气——湿法脱硫烟道、脱硫塔、地坪首选。
Vinyl-ester / epoxy glass-flake linings for acid condensate and 120°C flue gas — FGD ducts, towers, floors.
耐磨抗冲蚀涂层
Anti-Wear Coatings
陶瓷/高硬粒子增强，抵抗颗粒冲刷——输煤溜槽、灰渣管道、磨机与泵件内衬。
Ceramic-reinforced linings resisting particle erosion — chutes, ash lines, mill and pump internals.
导静电与耐油体系
Antistatic & Oil-Resistant
储油设施内壁导静电防腐，兼耐油品浸泡——油罐、油箱、含油污水设施。
Static-dissipative, oil-immersion-proof linings for tanks and oily-water facilities.
钢结构长效防腐配套
Steel Long-Life Systems
环氧富锌 + 环氧云铁中间漆 + 聚氨酯/氟碳面漆，C4/C5 腐蚀环境 15 年+ 设计寿命。
Zinc-rich epoxy + mica epoxy + PU/fluorocarbon topcoats — C4/C5 atmospheres, 15+ year design life.
高分子修补 · 粘接胶系列Adhesives, Putties & Sealants
涂层管大面，胶类管局部——耐磨修补、陶瓷衬里粘接、堵漏与电缆冷补等现场修复材料：膏状可刮涂成型、胶泥可抹涂保护，按工况选型号，室温固化即可回用。
Coatings protect the surfaces; these adhesives and putties fix the spots — on-site materials for pitting, erosion, leaks and ceramic lining, curable at room temperature.
BR-167 高分子纳米复合防磨修复剂（刷涂型耐磨涂层）BR-167 Nano Anti-Wear Repair Coating
双组份 · 可流动膏状 · 灰 / 黑 / 蓝
含超细陶瓷颗粒的双组份修复材料，刷涂/刮涂即得光滑耐磨防腐涂层；既可作耐磨颗粒胶的面胶，也可单独使用。用于水泵叶轮、风机叶轮、壳体、管道、弯头、闸阀的磨损/气蚀/腐蚀修复与预保护。工作温度 -60~220℃，硬度 Shore D 81，25℃ 下 45 分钟操作时限、24 小时完全固化。
Two-part ceramic-particle repair compound — brush or trowel on for a smooth anti-wear coating; use as a top coat over wear putty or on its own. Repairs pumps, fan impellers, casings, pipes, elbows, valves. −60~220°C, Shore D 81, 45-min work time / 24-h cure at 25°C.
BR-181 金属快速修补剂BR-181 Metal Rapid Repair Putty
双组份 · 金属冷焊修补 · 铝箔袋装
双组份金属冷焊修补材料，配合夹具修复轴颈、壳体、法兰密封面与焊缝缺陷，可带压堵漏；固化后机械加工性能良好——把"停机开盖大修"变成"当班应急修补"。
Two-part cold-weld putty for shafts, housings, flange faces and welds; machinable after cure, sealable under pressure.
BR-172 高温高分子硅橡胶粘合剂BR-172 High-Temp Silicone Adhesive
单组份 · 室温固化 · 管装
单组份室温固化硅橡胶粘合剂，-60~360℃ 宽温域服役——高温工况耐磨陶瓷片粘接、高温管道密封与负压系统密封一次完成。
One-part RTV silicone adhesive rated −60~360°C — bonds wear ceramics and seals hot pipes and vacuum systems.
BR-175 高温复合粘合剂（陶瓷片粘贴胶）BR-175 Ceramic Lining Adhesive
双组份环氧结构胶 · 10kg/套 · 1:1
专为耐磨陶瓷片与金属/陶瓷基材粘接设计的高强度结构胶，耐磨损、耐冲击、耐化学腐蚀——电厂落煤管、煤粉管道、脱硫脱硝烟道的陶瓷衬里与防磨板粘贴工程。
High-strength structural epoxy for bonding wear ceramics to steel and cast iron — chutes, coal pipes and FGD ducts.
R-182 高分子快速堵漏胶棒R-182 Quick Leak-Seal Putty Stick
双组份胶泥 · 5 分钟止漏 · 可带压施工
室温快速固化的双组份胶泥，成型不粘手、耐油防水、可带压堵漏——变压器、油箱、油罐、油管与化工法兰泄漏的应急抢修首选。工作 -60~150℃，完全固化约 3 小时。
Fast-cure two-part putty — stops leaks in 5 minutes, even under pressure. Ideal for transformers, tanks, pipes and flanges. −60~150°C, full cure ~3 h.

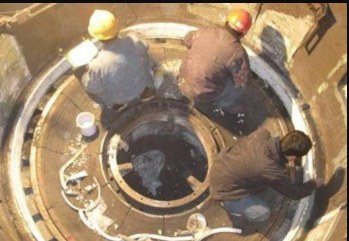

BR-176 高温复合保护剂BR-176 High-Temp Protective Putty
胶泥型 · 抹涂成型 · 高温抗磨修补
抹涂成型的耐磨耐蚀修补防护层（施工厚度约 1.5mm，光滑基面先焊钢网增强）——磨煤机动环、人孔门、煤矿离心机等高温磨损部位就地修复，不拆卸、不更换。
Trowel-applied anti-wear repair layer (~1.5mm) for mill dynamic rings, manholes and coal centrifuges — repaired in place at high temperature.
BR-170 碳化硅耐磨防护剂BR-170 SiC Wear-Resistant Putty
双组份 4:1 · 刮涂成型 · 常温固化
含碳化硅耐磨骨料的双组份防护剂，刮涂成任意形状——修复泥浆泵壳体、叶轮、浆液管道的冲蚀/腐蚀磨损并制备耐磨防腐涂层。工作 -60~250℃，25℃ 完全固化约 24 小时。
SiC-filled two-part putty, trowel into any shape — slurry pump casings, impellers and pipes against erosion. −60~250°C, ~24 h cure.
BR-187 高分子电缆阻燃冷补胶BR-187 Flame-Retardant Cable Cold Repair Putty
阻燃聚氨酯 · 快速冷补 · 免加热
针对矿井电缆、船舶电缆等经常弯曲电缆的接头与护套破损，10kV 以下中压接头绝缘及护套的快速冷补修复密封——免加热硫化，常温成型即恢复绝缘与机械防护。
RTV polyurethane cold repair for cable joints and sheaths that flex — mine and marine cables, insulation and sealing up to 10 kV, no heat required.
防腐工程服务Application Works
四类典型场景，一套完整打法：诊断 → 选材 → 施工 → 检测 → 巡检。
Four typical scenarios, one complete playbook: diagnose → select → apply → test → inspect.
烟囱防腐改造Chimney Retrofit
湿法脱硫后低温酸结露腐蚀的综合治理：玻化砖/发泡玻璃砖内衬、耐酸胶泥砌筑、耐温防腐涂料体系；砖烟囱与钢烟囱均适用。
Solving low-temperature acid corrosion after FGD: glass block linings, acid-resistant mortars and high-temp coatings for brick and steel stacks.
脱硫塔 / 烟道衬里FGD Tower & Duct Lining
湿法脱硫塔、原/净烟道乙烯基酯玻璃鳞片衬里体系，耐 120℃ 烟气、耐强酸结露与浆液冲刷，焊缝区重点加强。
Vinyl-ester glass-flake lining for wet FGD towers and ducts: 120°C flue gas, acid condensate and slurry erosion resistance, reinforced at welds.
储罐内防腐Storage Tank Lining
酸碱储罐玻璃鳞片衬里、油罐导静电涂料、水罐食品级环氧体系；喷砂 Sa2.5 + 电火花 + 附着力全检。
Glass-flake acid lining, antistatic oil-tank coating, potable-water epoxy; Sa2.5 blast, spark and adhesion testing throughout.
管道与钢结构防腐Pipeline & Steel Protection
埋地管道 3PE/环氧粉末 + 阴极保护配合；架空与高温管线聚氨酯/环氧配套；厂房钢结构环氧富锌长效体系。
3PE / FBE with cathodic protection for buried lines; PU/epoxy systems for above-ground and steam lines; zinc-rich systems for plant steel.
防腐工程质量控制点Application QC Points
防腐是隐蔽工程——每一道看不见的工序，都要有看得见的记录。
Corrosion work is hidden work — every invisible step deserves a visible record.
| 工序 | Step | 控制要求 | Requirement |
|---|---|---|---|
| 表面处理 | Surface prep | 喷砂/抛丸达 Sa2.5，粗糙度 40–75μm | Sa2.5 blast, 40–75µm profile |
| 环境条件 | Environment | 相对湿度 ≤85%，露点以上 3℃ 施工 | RH≤85%, 3°C above dew point |
| 涂层厚度 | Film thickness | 湿膜+干膜逐点测量，90/10 规则判定 | DFT per point, 90/10 rule |
| 针孔检测 | Holiday test | 衬里层 100% 电火花扫描 | 100% spark scan on linings |
| 附着与养护 | Adhesion & cure | 拉拔附着力 ≥5MPa，按 TDS 养护 | Pull-off ≥5MPa, cure per TDS |
| 验收交付 | Handover | 检测数据 + 影像 + 材料质保书归档 | Data, photos & CoA archived |
自有班组施工
Own Crews
不转包、不赶工——班组稳定，工艺标准稳定，质量才稳定。
No subcontracting, no rushing — stable crews mean stable quality.
全程影像留档
Photo Records
每道工序拍照+数据记录，隐蔽工程不"隐蔽"。
Every step photographed and logged — hidden work, unhidden records.
质保与回访
Warranty & Visits
质保承诺 + 定期回访巡检，48h 应急到场。
Warranty plus scheduled inspections and 48h emergency response.
设施在腐蚀？先做一次专业诊断
Corrosion creeping in? Start with a survey
上传现场照片或描述工况，工程师免费评估腐蚀/磨损风险并给出选材建议。
Send photos or describe conditions — engineers assess corrosion/wear risk and recommend systems, free.
